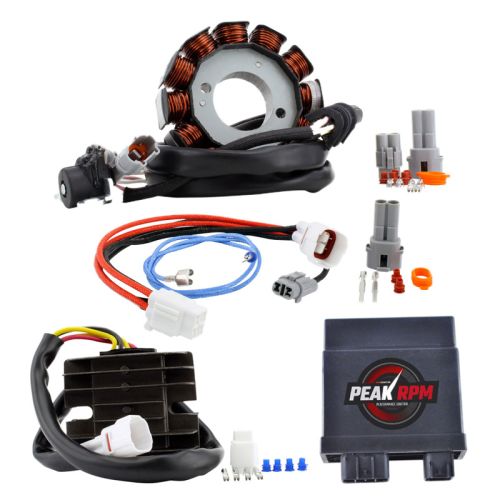

RMS AC To DC Lighting + 140W High Power Stator + Voltage Regulator + CDI Box ECM System Upgrade (Yamaha)
Impossible de charger la disponibilité pour le Service de retrait
Fast Shipping from Canadian Warehouses
Fast Shipping from Canadian Warehouses
📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays
Brand new HO Stator + Heavy Duty Regulator Rectifier + PeakRPM CDI Box ECM Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Brand new High output stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- The Quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
- Our part is a Plug-and-play unit, direct fit, and easy to install.
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components.
- The Quality exceeds the OEM equipment
- All products shipped are tested
Specifications:
Stator Dimensions :
Interior diameter : 30 mm
Exterior diameter : 85 mm
Thickness : 10 mm
Length of wires stator to grommet : 180 mm
Length of wires grommet to plug : 900 mm
Length of pickup coil's wire to grommet : 90 mm
Other specifications :
Number of wires : 4
Number of plugs : 2
Number of pins : 4
Wire to wire resistance :
Pickup : White to Red = 275 ohms +/- 20%
Alternator : White to Yellow = 0.4 ohms +/- 20%
Voltage Regulator Rectifier Dimensions :
Width : 63 mm
Length : 78 mm
Height : 26 mm
Fixation holes center to center : 60 mm
Wires length : 450 mm
Other specifications :
Number of plugs : 1
Number of pins : 4
HP CDI Box Dimensions :
Height : 36 mm
Length : 86 mm
Width : 81 mm
Other specifications :
Number of plugs : 2
Number of pins : 12
Warning:
Please note : This product is a AC to DC conversion kit and reconfigures the lights to run off of the battery.
This kit will not fit on "R" models.
