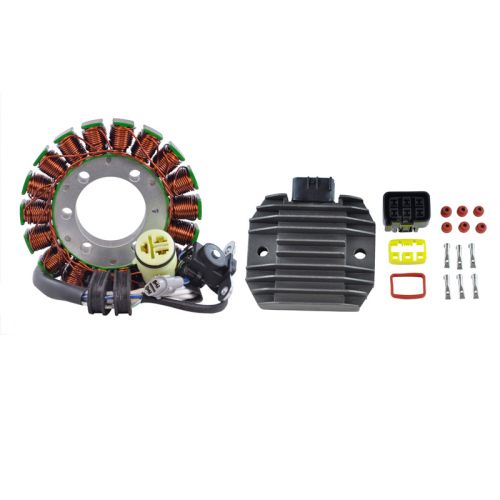

RMS Kit Stator + Voltage Regulator Rectifier (Yamaha)

Brand new Kit Generator Stator + Voltage Regulator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

Generator Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

Regulator

• No assembly required
• Higher grade of electric components
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment
• We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Stator Dimensions
Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 18 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 200 mm
Length of pickup coil's wire to grommet : 75 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : White to White = 0.8 ohms +-20%
Pickup : Blue/White to White/Green = 250 ohms +-20%

Regulator Dimensions
Width : 89 mm
Length : 91 mm
Height: 27 mm
Fixation holes center to center : 65 mm

Other specifications :
Number of plugs : 1
Number of pins : 6
