RMS Stator + Crankcase Cover Gasket (Yamaha)
Impossible de charger la disponibilité pour le Service de retrait
Fast Shipping from Canadian Warehouses
Fast Shipping from Canadian Warehouses
📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays

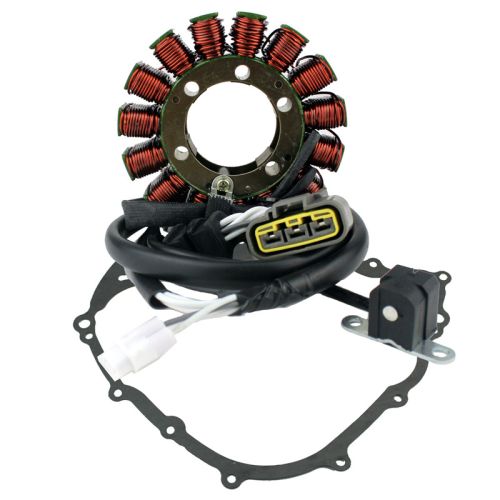

RMS Stator + Crankcase Cover Gasket (Yamaha)
Brand new aftermarket generator stator + crankcase cover gasket
- Stator crankcase cover gasket included
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions Stator :
Interior diameter : 45 mm
Exterior diameter : 106 mm
Thickness : 27 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 550 mm & 1100 mm
Length of pickup coil's wire to grommet : 80 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Pickup : White to Grey = 500 ohms +/-20%
