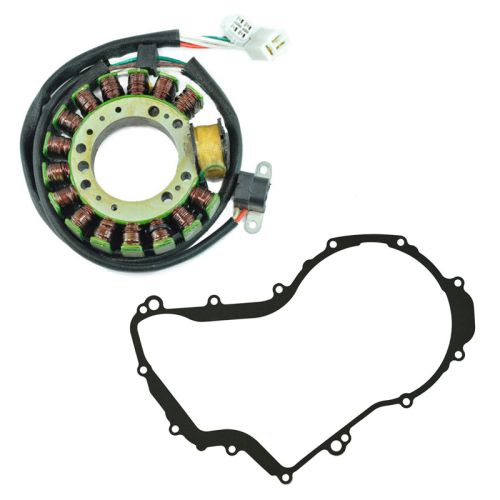

RMS Kit Stator + Crankcase Cover Gasket (Yamaha)

Brand new kit aftermarket stator + crankcase cover gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Stator crankcase cover gasket included
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions Stator :
Interior diameter : 54mm
Exterior diameter : 115mm
Thickness : 14mm
Length of wires stator to grommet : 135mm
Length of wires grommet to plug : 480mm
Length of pickup coil's wire to grommet : 210mm

Other specifications :
Number of wires : 7
Number of plugs : 1
Number of pins : 7

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Pickup : White to Red = 570 ohms +/-20%
Source : Green to Brown = 318 ohms +/-20%
