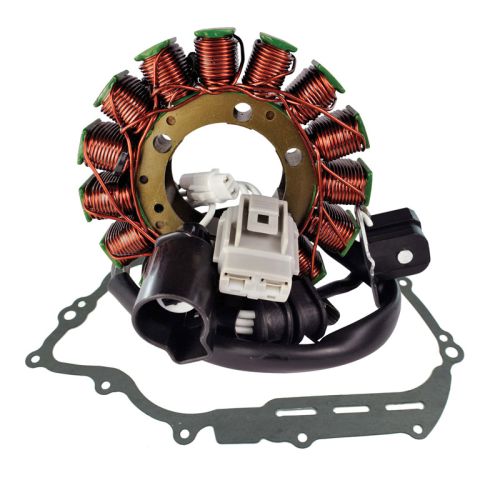

RMS Kit Stator + Crankcase Cover Gasket (Yamaha)

Brand new Kit Stator + Crankcase Cover Gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Stator:

• Highest grade of lamination materials
• Highest grade of copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

Specifications:

Dimensions Stator :
Interior diameter : 41 mm
Exterior diameter : 105 mm
Thickness : 19 mm
Length of wires stator to grommet : 65 mm
Length of wires grommet to plug : 400 mm
Length of pickup coil's wire to grommet : 65 mm

Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5

Wire to wire resistance :
Alternator : White to White = 0.4 ohms +/-20%
Pickup : White to Grey = 500 ohms +/-20%
