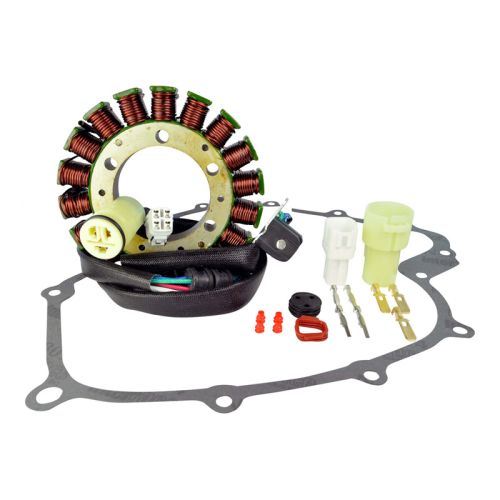

RMS HO Stator + Gasket (Yamaha)

Brand new aftermarket High Output Stator + Crankcase Cover Gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Specifications:

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 14 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 500 mm
Length of pickup coil's wire to grommet : 150 mm

Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : White Between Each White = 0.4 ohms +/-20%
Pickup : Blue To Green = 450 ohms +/-20%
Position sensor : Red To White/Blue = 0.4 ohms +/-20%
