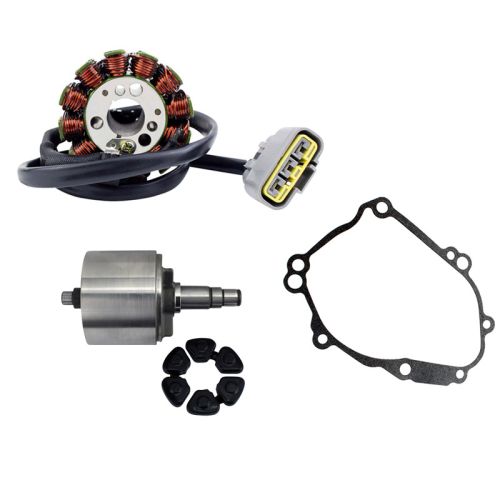

RMS Kit Stator + Flywheel + Gasket (Yamaha)

Brand new aftermarket Stator + Flywheel + Gasket kit

• Crankcase cover gasket included
• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included

Specifications:

Stator Dimensions:
Interior diameter : 18 mm
Exterior diameter : 68 mm
Thickness : 42 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 500 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +/-20%

Flywheel Dimensions:
Exterior Diameter: 80 mm
Interior Diameter: 69 mm
Interior Diameter Center Housing: 12 mm
Exterior Diameter Center Housing: 18 mm
Thickness (exterior): 11 mm
Thickness (interior): 6 mm

Diameter of the Shaft largest to the narrowest:

• 26 mm
• 20 mm
• 18 mm
• 15 mm

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
