RMS Kit Stator + Ignition Coil + Solenoid (Yamaha)

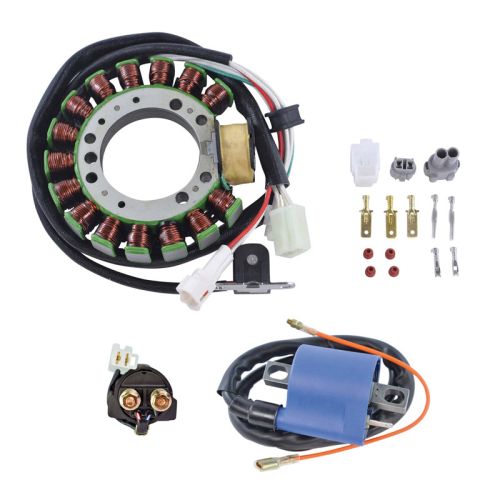

Brand New Kit Stator + External Ignition Coil + Starter Relay Solenoid Switch

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

If your old parts are defective, RM Stator offer replacements parts of high qualities at a fraction of the cost of genuine parts.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

• You must re-install your OEM spark plug cap(s)
• Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install
• Highest grade of lamination materials

• The Quality exceeds the OEM equipment

Specifications:

Dimensions Stator
Dimensions :
Interior diameter : 53 mm
Exterior diameter : 115 mm
Thickness : 14 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 420 mm
Length of pickup coil's wire to grommet : 300 mm

Other specifications :
Number of wires : 7
Number of plugs : 3
Number of pins : 7

Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +/-20%
Pickup : White to Red = 450 ohms +/-20%
Source : Green to Brown = 320 ohms +/-20%

Dimensions Starter Relay Solenoid Switch:
Height : 39 mm
Length : 43 mm
Width : 46 mm

Other specifications :
Number of wires : 2
Number of terminals : 2
Number of plugs : 1

External ignition coil
Fixation holes center to center: 55 mm
