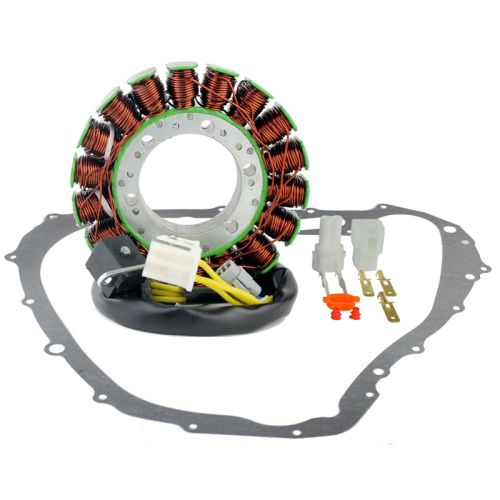

RMS Kit Stator + Stator Crankcase Cover Gasket (Suzuki)

Brand new kit generator stator + stator crankcase cover gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Brand new generator stator

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Specifications:

Dimensions Stator:
Interior diameter : 53mm
Exterior diameter : 125mm
Thickness : 20mm
Length of wires stator to grommet : 155mm
Length of wires grommet to plug : 435mm & 475mm
Length of pickup coil's wire to grommet : 175mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : Blue to White = 208ohms +/-20%
