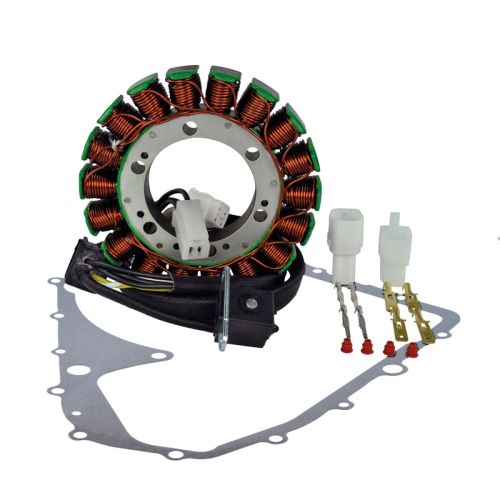

RMS Kit Stator + Crankcase Cover Gasket

Brand new aftermaket Stator + Gasket Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Pick up pulsar coil included
• Rubber grommet included
• Gasket included
• All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

At RMSTATOR, we believe that proper installation guarantees a longer lifetime. This is why we include a stator cover gasket and a dielectric grease tube.
Consult the connectors circle of death for more information on dielectric grease.

Specifications:

Dimensions Stator :
Interior diameter: 53 mm
Exterior diameter: 119 mm
Thickness: 15 mm

Other specifications:
Number of wires: 7
Number of plugs: 4
Number of pins: 7

Wire to wire resistance:
Alternator : White Between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Pick up Coil : Blue to green = 200 ohms+/- 20%
Position Sensor :White to yellow = 0.2 ohms+/- 20%
