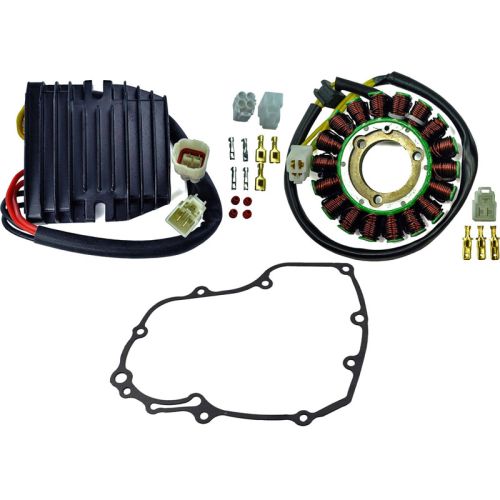

RMS Kit Improved Heavy Duty Stator + Mosfet Voltage Regulator Rectifier + Gasket (Suzuki)
Impossible de charger la disponibilité pour le Service de retrait
Fast Shipping from Canadian Warehouses
Fast Shipping from Canadian Warehouses
📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays
RMS Kit Improved Heavy Duty Stator + Mosfet Voltage Regulator Recti...
Specifications:
Stator
Dimensions :
Interior diameter : 36mm
Exterior diameter : 106mm
Thickness : 8mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 315mm
Length of pickup coil's wire to grommet : N/A
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Yellow Between each Yellow = 0.4 ohms +/-20%
Mosfet voltage regulator rectifier
Dimensions :
Width : 92mm
Length : 92mm
Height: 30mm
Wires length : 250mm
Fixation holes center to center : 75mm
Other specifications :
Number of plugs : 2
Number of wires : 7
Number of pins : 7
