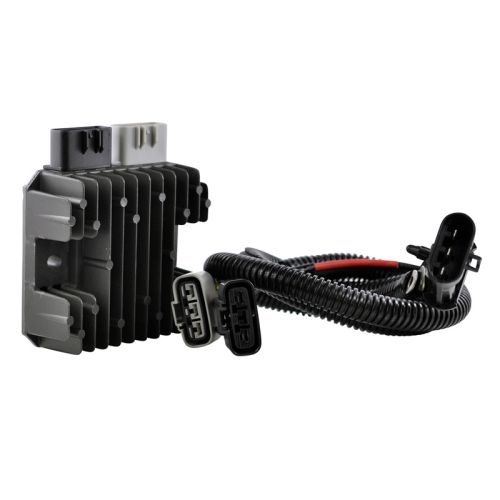

RMS 65A Heavy Duty Mosfet Voltage Regulator (Polaris)

Don't settle for an unreliable charging system!

Polaris ATVs/UTVs are hugely popular vehicles. Unfortunately the voltage regulators on these vehicles are known for very poor reliability.

Our experience has shown that the amount of electrical customization, the vehicle environment and the driving style have a huge impact on the voltage regulator's ability to operate reliably.

With this in mind, we have designed a new voltage regulator with 65Amps-rated components to support more aggressive level of stress the owner puts on the vehicle's electrical system, either by adding accessories or by driving the vehicle to the edge of failure.

Specifications:

Dimensions:
Width: 110 mm
Length: 121 mm
Height: 43 mm
Fixation holes center to center: 85 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Wires Length: 580 mm & 600 mm
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°

Warning:

Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Fitment notice:

Important notice: This product is a direct aftermarket replacement to Polaris Recall Z-16-01-C (OEM # 2206620, 2206367, 2206473) includes a conversion harness to allow a worry free connection to older models main harness. However, for
