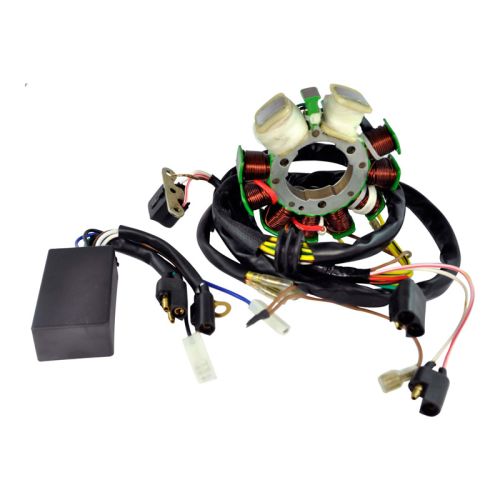

RMS Kit Stator + Peakrpm CDI Box (Polaris)

Brand new kit Stator + PeakRPM CDI Box

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

PeakRPM CDI Box

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

Note: The OEM 3086982 has 2 possibles CDI's for some Polaris models, please compare your original part with our product before purchasing

Specifications:

Stator
Interior diameter : 42mm
Exterior diameter : 105mm
Thickness : 32mm
Length of wires stator to grommet : 140mm
Length of wires grommet to plug : 1000mm
Length of pickup coil's wire to grommet : 70mm

Other specifications :
Number of wires : 9
Number of plugs : 7
Number of pins : 12

Wire to wire resistance :
Alternator : Yellow to Yellow/Red = 0.4ohms +/-20%
Pickup : White/Red to White = 115ohms +/-20%
Source : Black/Red to Green = 450ohms +/-20%
Source 2 : Red to Green = 4.1ohms +/-20%

CDI Box
Height: 70 mm
Length: 23 mm
Width: 38 mm

Other specifications:
Number of plugs: 5
Number of pins: 8
