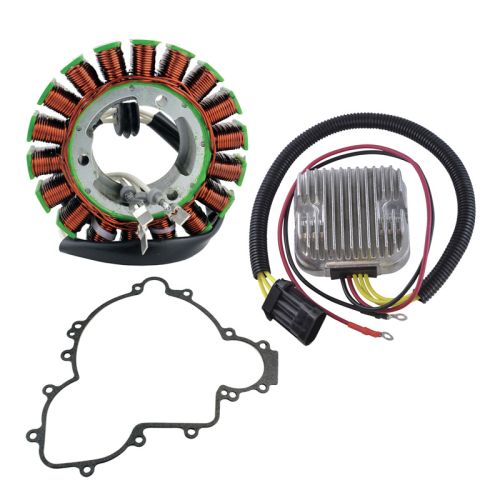

RMS Kit Stator + Mosfet Regulator Rectifier + Gasket (Polaris)

Brand New Kit Stator + Mosfet Voltage Regulator Rectifier + Crankcase Cover Gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Connectors included
• The quality exceeds the OEM equipment
• All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included
• Crankcase cover gasket included

*Please note that there are two possible stators for the models RZR XP 900 EFI & RZR XP 4 900 in 2012

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
This modern, ultra-reliable design can handle up to 50amp peaks and 30amp continuous 3 phase, 30amp single phase.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher grade of electric components
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment
• All products shipped are tested

Specifications:

Dimensions Stator :
Interior diameter : 54 mm
Exterior diameter : 126 mm
Thickness : 19 mm
Length of wires stator to grommet : 85 mm
Length of wires grommet to plug : 290 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Black between each Black = 0.4 ohms +/-20%

Dimensions Mosfet Voltage Regulator Rectifier:
Height : 49 mm
Width : 111 mm
Fixation holes center to center : 82 mm
Wires length : 600 mm & 580 mm

Other specifications :
Number of plugs : 2
Number of pins : 5
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50 A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?
