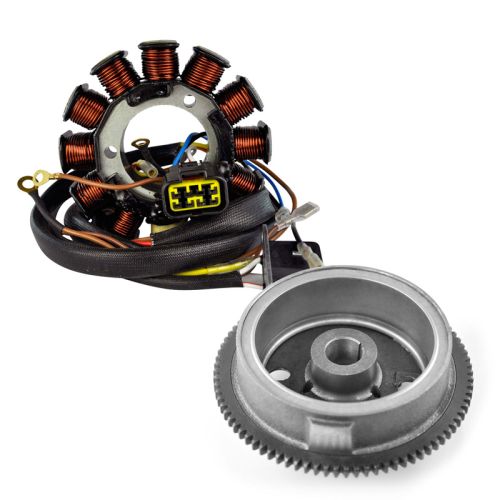

RMS Kit Stator + Flywheel (Polaris)
Two flywheels exist for Polaris 500cc models. This flywheel has the code FF97 stamped on its back. In doubt, please refer to specifications.
A Heavy Duty Flywheel to the rescue!
New RMSTATOR & trade heavy-duty flywheel rotor for Polaris ATVs is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.
Features
-
Built to OEM size
Fits precisely in your ride: install it and forget it. -
Improved epoxy
Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment. -
High grade steel capping
Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator. -
Precise balancing
Eliminates crankshaft vibrations for longer engine longevity -
Shop with confidence
All products are tested.
Don't waste time with temporary solutions, and start fixing your ride like a pro!
Specifications:
Stator:
Dimensions :
Interior diameter : 47 mm
Exterior diameter : 114 mm
Thickness : 20 mm
Length of wires stator to grommet : 155 mm
Length of wires grommet to plug : 900 mm
Length of pickup coil's wire to grommet : 60 mm
Other specifications :
Number of wires : 7
Number of plugs : 9
Number of pins : 12
Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%
Pickup : White/Red to Red = 115 ohms +/-20%
Source : Black to Red = 18 ohms +/-20%
Flywheel:
Dimensions:
Exterior Diameter: 141 mm
Interior Diameter: 117 mm
Interior Diameter Center Housing: 25 mm
Exterior Diameter Center Housing: 23 mm
