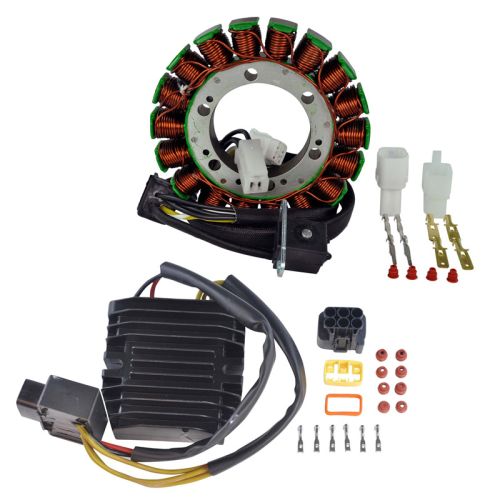

RMS Kit Stator + Mosfet Voltage Regulator Rectifier

Brand New Kit Aftermarket Stator + Mosfet Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Brand new stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Pick up pulsar coil included
• Rubber grommet included

Mosfet Voltage Regulator Rectifier

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
This modern, ultra-reliable design can handle up to 50amp peaks and 30amp continuous 3 phase, 30amp single phase.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Higher grade of electronic components
• Improved heat sink and charging capabilities

Specifications:

Dimensions Stator:
Interior diameter: 53 mm
Exterior diameter: 119 mm
Thickness: 15 mm

Other specifications:
Number of wires: 7
Number of plugs: 4
Number of pins: 7

Wire to wire resistance:
Alternator : White Between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Pick up Coil : Blue to green = 200 ohms+/- 20%
Position Sensor :White to yellow = 0.2 ohms+/- 20%

Dimensions Mosfet Regulator:
Width : 93mm
Length : 102mm
Height: 27mm
Fixation holes center to center : 72mm

Other specifications :
Number of plugs : 1
Number of pins : 6
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?
