Marinco Connect Pro Power Plug

The ConnectPro has superior electric current arrying capacity to eliminate problems that rob motors of power and reduce battery life. The ConnectPro system features a locking plug and receptacle with spring claming which provide a secure electrical contact.
Receptable: Universal design for 2 - or 3-wire configuration; 12, 24, 12/24, 24/36 or 36 volt systems

• Watertight sealing cap
• Corrosion resistant, plated brass electrical components
• Drain holes in receptacle keep water away from electrical components
• Perma-LockTM screw terminals will not loosen under extreme hull vibration
• Standard 1-1/8” diameter mounting hole
• Easy to install, with supplied mounting plate for front panel installation, or locking ring for rear access installation
• Accepts 10 to 8 gauge wire
• Easily replaces other trolling motor plugs and receptacles.

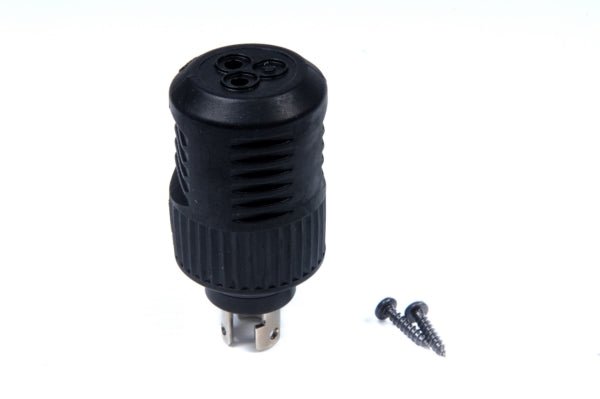

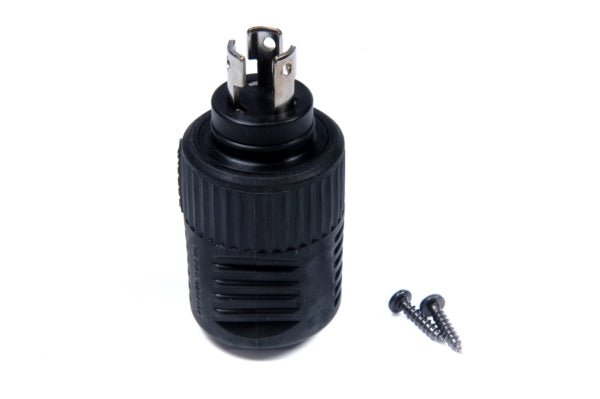

Plug: O-ring seal for waterproof connections
• Weather resistant plug cover
• Corrosion resistant, plated brass electrical components
• Accepts 16 to 8 gauge wire
• Ergonomic soft contoured grip for easy hook-up and blade alignment
Adapter: Allows 6 gauge wire connection to ConnectPro Receptacle
• Corrosion resistant, plated brass electrical components
• Easy to install.
