Kimpex  |  SKU : 19-1009-KIMP

Kimpex Universal Joint

$42.99
✔ In stock — ready to ship
⚡ Typically ships within 1–2 business days
🚚 Free shipping on orders over $279
📦 Ships from Canadian warehouses (AB, ON, QC)
🔒 Secure checkout — trusted payment methods

Fast Shipping from Canadian Warehouses

📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays

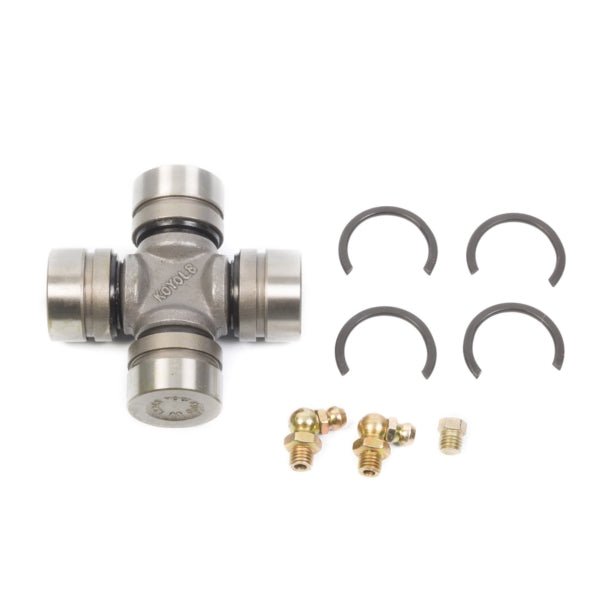

  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.
Notes for utility Models:

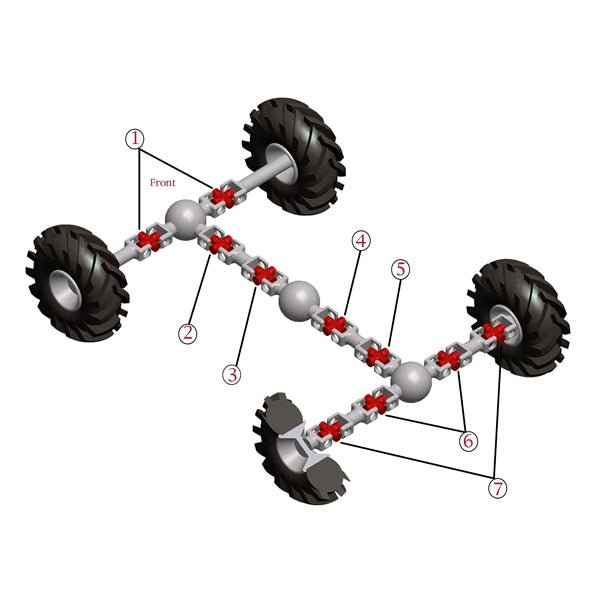

  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online at the Axles & Universal CV Boots section.
    • SKU: 19-1009-KIMP
    • Model number: 19-1009-KIMP
    • Original Product Type: Universal Joints
    • Position: Varies by model
    • Snap ring included: Yes
    • Tip length: 0.984"
    • Total length: 1.772"
    • Zerk: Yes
    MakeModelYears
    KAWASAKIKAF1000A Mule Pro-DXT Diesel2016-2018, 2021
    KAWASAKIKAF1000B Mule Pro-DXT EPS Diesel2016-2018, 2021
    KAWASAKIKAF1000C Mule Pro-DXT EPS LE Diesel2016-2017, 2019
    KAWASAKIKAF1000D Mule Pro-DX Diesel2016-2017
    KAWASAKIKAF1000E Mule Pro-DX EPS Diesel2016-2018, 2021
    KAWASAKIKAF1000F Mule Pro-DX EPS LE Diesel2019
    KAWASAKIKAF1000J Mule Pro-DXT EPS Diesel Fleet Edition2021
    KAWASAKIKAF620A 4x4 Mule 25101993-2000
    KAWASAKIKAF620B Mule 25201993, 1995, 1997-2000
    KAWASAKIKAF620C Mule 25001994-1995, 1997-2000
    KAWASAKIKAF620E 4x4 Mule 30102001-2008
    KAWASAKIKAF620F Mule 30202001-2003
    KAWASAKIKAF620G Mule 30002001-2008
    KAWASAKIKAF620J 4x4 Mule 3010 Trans2005-2008
    KAWASAKIKAF620M 4x4 Mule 40102009-2023
    KAWASAKIKAF620P Mule 40002009-2011, 2014-2023
    KAWASAKIKAF620R 4x4 Mule 4010 Trans2009-2021
    KAWASAKIKAF620S 4x4 Mule 4010 Trans2014, 2019
    KAWASAKIKAF620W Mule 4000 Trans2018-2021
    KAWASAKIKAF700C Mule Pro MX EPS LE2019-2020
    KAWASAKIKAF820 Mule Pro FXT EPS Ranch Edition2016-2021
    KAWASAKIKAF820A Mule Pro FXT2015-2021
    KAWASAKIKAF820B Mule Pro FXT EPS2015-2021
    KAWASAKIKAF820C Mule Pro FXT EPS LE2015-2021
    KAWASAKIKAF820E Mule Pro FX2016-2022
    KAWASAKIKAF820F Mule Pro FX EPS2016-2022
    KAWASAKIKAF820G Mule Pro FX EPS LE2016-2022
    KAWASAKIKAF820K Mule Pro FXR EPS2018-2023
    KAWASAKIKAF950A 4x4 Mule 3010 Diesel2003-2004
    KAWASAKIKAF950A Mule 2510 Diesel2000-2002
    KAWASAKIKAF950B 4x4 Mule 3010 Diesel2003-2007
    KAWASAKIKAF950D 4x4 Mule 3010 Diesel EPS2008
    KAWASAKIKAF950E 4x4 Mule 3010 Diesel Trans2007-2008
    KAWASAKIKAF950F 4x4 Mule 4010 Diesel2009-2013
    KAWASAKIKAF950G 4x4 Mule 4010 Diesel Trans2009-2013
    KAWASAKIKAT620B Mule 4010 Trans 4x42022-2023
    KAWASAKIKAT820A Mule PRO-FXT2022-2023
    KAWASAKIKAT820E Mule Pro FXT EPS Ranch Edition2022
    KAWASAKIKDF1000A Mule Pro-DX 1000 EPS Diesel2023
    KAWASAKIKDF1000A Mule Pro-DX EPS2022
    KAWASAKIKDT1000A Mule Pro-DXT2022
    KAWASAKIKDT1000B Mule Pro-DXT 1000 EPS Diesel2023
    KAWASAKIKDT1000B Mule Pro-DXT EPS2022
    KAWASAKIKRF1000A Teryx KRX 10002020-2023
    KAWASAKIKRF1000B Teryx KRX 1000 Trail Edition2021-2023
    KAWASAKIKRF1000C Teryx KRX 1000 SE2021-2023
    KAWASAKIKRF1000D Teryx KRX 1000 eS2023
    KAWASAKIKRF800F Teryx EPS2014-2023
    KAWASAKIKRF800G Teryx LE EPS2014-2021
    KAWASAKIKRF800J Teryx S2021-2023
    KAWASAKIKRT1000A Teryx KRX4 1000 eS2023
    KAWASAKIKRT1000B Teryx KRX4 1000 eS SE2023
    KAWASAKIKRT750A Teryx42012-2013
    KAWASAKIKRT750B Teryx4 EPS2012-2013
    KAWASAKIKRT800 Teryx4 EPS2014-2023
    KAWASAKIKRT800 Teryx4 LE EPS2014-2021
    KAWASAKIKRT800JMFN Teryx4 S EPS (US)2021
    KAWASAKIKRT800JNF Teryx4 (US)2022
    KAWASAKIKRT800L Teryx4 S SE2023
    KAWASAKIMule 25001994-1995, 1997-2000
    KAWASAKIMule 2510 4x41993-2000
    KAWASAKIMule 2510 Diesel2000-2002
    KAWASAKIMule 25201993, 1995, 1997-2000
    KAWASAKIMule 30002001-2008
    KAWASAKIMule 3010 4x42001-2008
    KAWASAKIMule 3010 Diesel 4x42003-2007
    KAWASAKIMule 3010 Diesel EPS 4x42008
    KAWASAKIMule 3010 Diesel Trans 4x42007-2008
    KAWASAKIMule 3010 Trans 4x42005-2008
    KAWASAKIMule 30202001-2003
    KAWASAKIMule 4000 2x42009-2011, 2014-2023
    KAWASAKIMule 4000 Trans 2x42018-2021
    KAWASAKIMule 4010 4x42009-2023
    KAWASAKIMule 4010 Diesel 4x42009-2013
    KAWASAKIMule 4010 Diesel Trans 4x42009-2013
    KAWASAKIMule 4010 Trans 4x42009-2023
    KAWASAKIMule PRO-FXT EPS2015-2021
    KAWASAKIMule Pro-DX Diesel2016-2017
    KAWASAKIMule Pro-DX EPS Diesel2016-2018, 2021-2023
    KAWASAKIMule Pro-DX EPS LE Diesel2019
    KAWASAKIMule Pro-DXT Diesel2016-2018, 2021-2022
    KAWASAKIMule Pro-DXT EPS Diesel2016-2018, 2021-2023
    KAWASAKIMule Pro-DXT EPS Diesel Fleet Edition2021
    KAWASAKIMule Pro-DXT EPS LE Diesel2016-2017, 2019
    KAWASAKIMule Pro-FX2016-2022
    KAWASAKIMule Pro-FX EPS2016-2022
    KAWASAKIMule Pro-FX EPS LE2016-2022
    KAWASAKIMule Pro-FXR EPS2018-2023
    KAWASAKIMule Pro-FXT2015-2023
    KAWASAKIMule Pro-FXT EPS LE2015-2021
    KAWASAKIMule Pro-FXT EPS Ranch Edition2016-2022
    KAWASAKIMule Pro-MX EPS LE2019-2020
    KAWASAKITeryx 800 EPS2014-2023
    KAWASAKITeryx 800 LE EPS2014-2021
    KAWASAKITeryx KRX 10002020-2023
    KAWASAKITeryx KRX 1000 Lifted Edition2021-2023
    KAWASAKITeryx KRX 1000 SE2021-2023
    KAWASAKITeryx KRX 1000 eS2023
    KAWASAKITeryx KRX4 1000 SE2023
    KAWASAKITeryx KRX4 1000 eS SE2023
    KAWASAKITeryx S 800 LE2021-2023
    KAWASAKITeryx4 7502012-2013
    KAWASAKITeryx4 750 EPS2012-2013
    KAWASAKITeryx4 800 EPS2014-2023
    KAWASAKITeryx4 800 LE EPS2014-2021
    KAWASAKITeryx4 S 800 EPS (US)2021
    KAWASAKITeryx4 S 800 SE EPS2023
