Kimpex  |  SKU : SF-010-007394

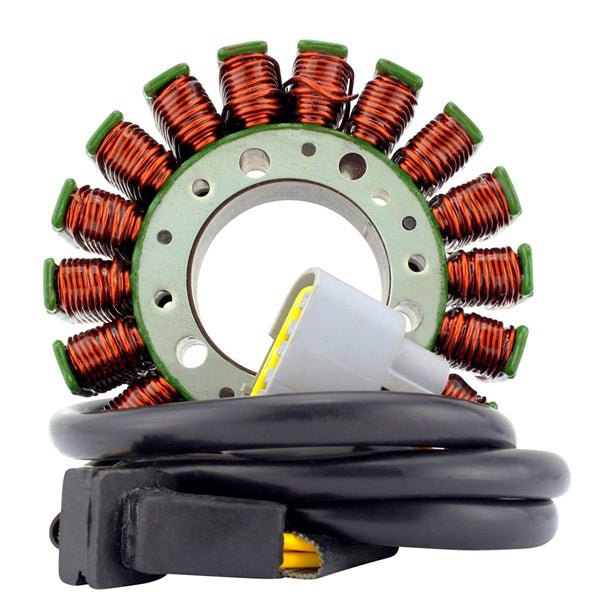

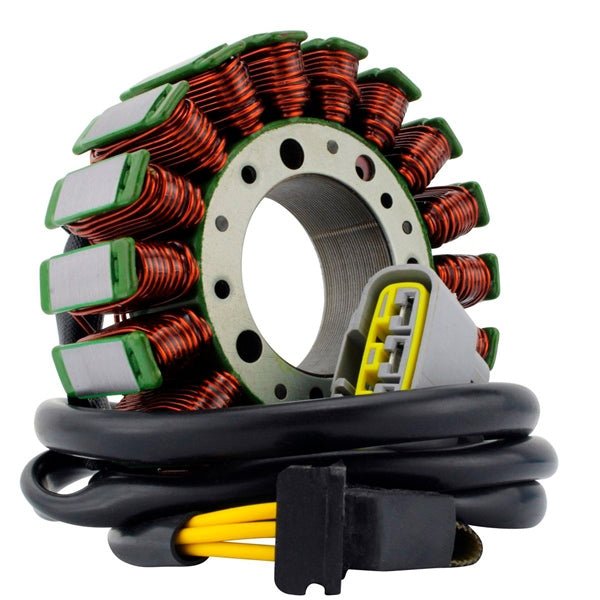

Kimpex Stator

$306.99 $340.99
✔ In stock — ready to ship
⚡ Typically ships within 1–2 business days
🚚 Free shipping on orders over $279
📦 Ships from Canadian warehouses (AB, ON, QC)
🔒 Secure checkout — trusted payment methods

Fast Shipping from Canadian Warehouses

📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

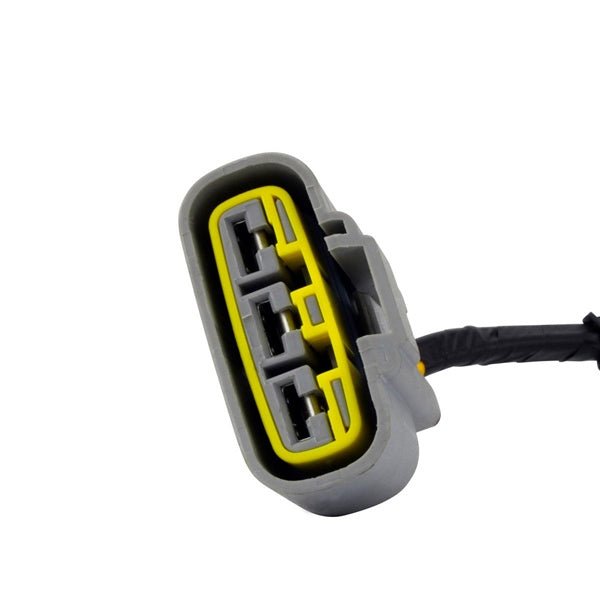

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-007394
  • Compatible Brand: Fits Sea-doo
  • External Diameter (mm): 104
  • Internal Diameter (mm): 42
  • Number: 345170
  • Number of connectors: 1
  • Number of terminals: 3
  • Number of wires: 3
  • Original Product Type: Stators
  • Thickness (mm): 24
MakeModelYears
SEA-DOOFish Pro 155 15032019
SEA-DOOFish Pro Scout 130 16302022
SEA-DOOFish Pro Sport 170 16302022
SEA-DOOGTI 130 Rental 16302020
SEA-DOOGTI P SE 130 15032018
SEA-DOOGTI P SE 155 15032018
SEA-DOOGTI SE 130 16302020-2022
SEA-DOOGTI SE 170 16302020, 2022
SEA-DOOGTI STD 130 16302020-2022
SEA-DOOGTR 230 16302020-2022
SEA-DOOGTR P STD 230 15032018
SEA-DOOGTR P X 230 15032018
SEA-DOOGTR X 230 15032018
SEA-DOOGTX Fish Pro 170 16302020-2021
SEA-DOOGTX LTD 300 16302018-2022
SEA-DOOGTX P LTD 230 15032018
SEA-DOOGTX P STD 155 15032018
SEA-DOOGTX P STD 230 15032018
SEA-DOOGTX STD 130 Rental 16302021-2022
SEA-DOOGTX STD 170 16302020-2022
SEA-DOOGTX STD 230 16302020-2022
SEA-DOORXP X 300 16302018-2022
SEA-DOORXT P STD 230 15032018
SEA-DOORXT X 300 16302018-2022
SEA-DOOWake P Pro 230 15032018
SEA-DOOWake P STD 155 15032018-2019
SEA-DOOWake Pro 230 16302020-2022
SEA-DOOWake STD 170 16302020, 2022
