Kimpex  |  SKU : SF-010-007075

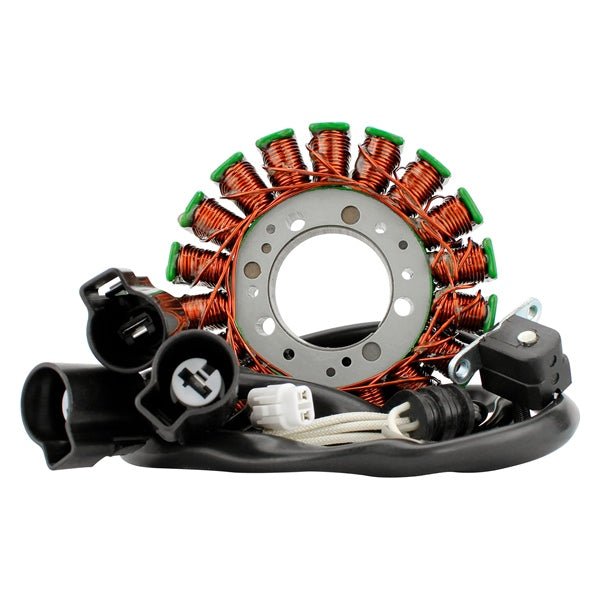

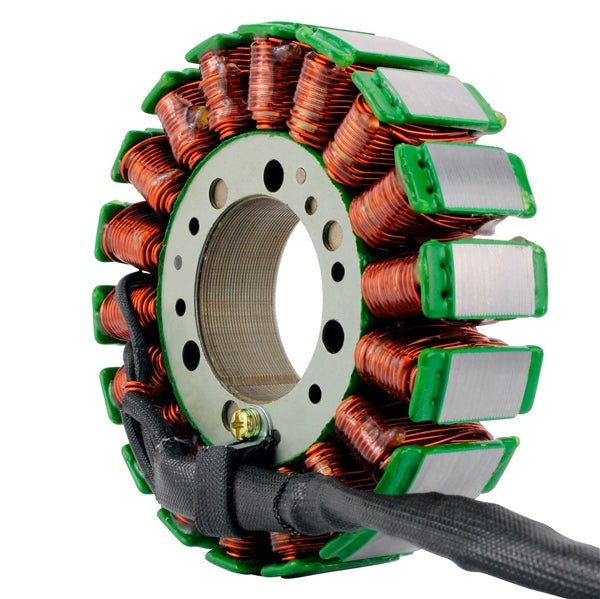

Kimpex Stator

$279.99 $310.99
✔ In stock — ready to ship
⚡ Typically ships within 1–2 business days
🚚 Free shipping on orders over $279
📦 Ships from Canadian warehouses (AB, ON, QC)
🔒 Secure checkout — trusted payment methods

Fast Shipping from Canadian Warehouses

📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-007075
  • Compatible Brand: Fits Yamaha
  • External Diameter (mm): 115
  • Internal Diameter (mm): 42
  • Notes: 18-Poles Generator Stator
  • Number: 225861
  • Number of connectors: 4
  • Number of terminals: 5
  • Number of wires: 5
  • Original Product Type: Stators
  • Thickness (mm): 23
MakeModelYears
YAMAHAYXZ1000R EPS2019-2024
YAMAHAYXZ1000R EPS SE2019-2020
YAMAHAYXZ1000R EPS SE YXZ10YMS2019-2020
YAMAHAYXZ1000R EPS SS2019-2024
YAMAHAYXZ1000R EPS SS SE2019-2021, 2024
YAMAHAYXZ1000R EPS SS SE YXZ10YES2019, 2022
YAMAHAYXZ1000R EPS SS XTR2020-2023
YAMAHAYXZ1000R EPS SS YXZ10YEX2019-2021
YAMAHAYXZ1000R EPS YXZ10YMX2019-2021
