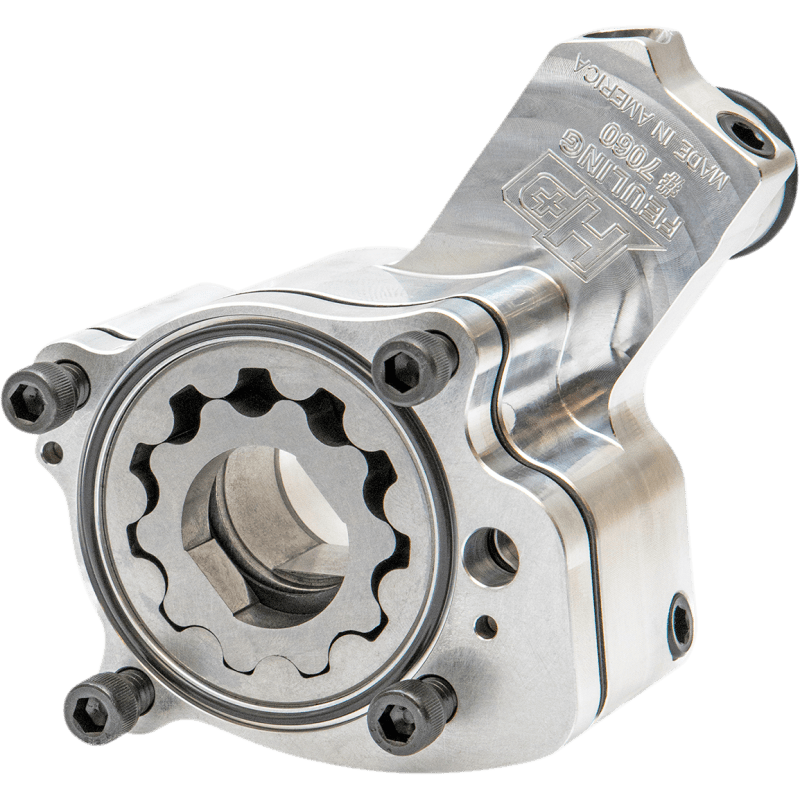

Feuling Oil Pump Corp. 06 Dyna/07-17 T/Cam Oil Pump

Increase oil pressure, oil volume, engine oil flow and return oil scavenging

Quieter and smoother engine operation

Engine temperatures run 15°-25° cooler

Oil temperatures run 15°-30° cooler

10-30 (EU: 0,69 - 2,06 Bar) more psi of oil pressure

Reduces wet sumping, blow by and oily air cleaners

Test results show 2 horsepower gain and 2 ft/lbs (EU: 2,71 Nm) of torque gain to the rear wheel on M-Eight

Feuling test results show as much as 50% reduction of engine sump oil level

Includes a billet 6061 aluminum high-volume oil pump and Feulings® High Flow billet camplate made from 7075 aluminum; which is 50% harder and stronger than the factory or Feuling OE+ camplates

Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil portholes throughout the camplate to the portholes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings

Oil pumps are bench-tested; the relief valve is seated and sealed to a minimum of 30 psi (EU: 2,06 bar) with full pop-off at 55-60 psi (EU: 3,79 bar - 4,13 bar)

Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function

Feuling oil pump and camplate combination eliminates common pressure and scavenge issues associated with the factory oiling systems

30% more pressure gear volume over stock, 53% more scavenge gear volume over stock and 42% more scavenge volume with port sizing, matched passages and holes to the engine case

Made in the U.S.A.
