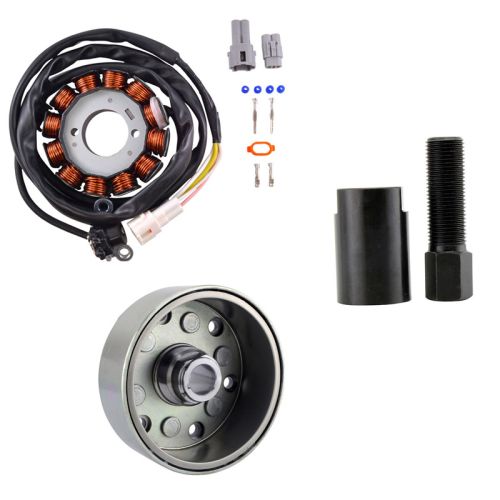

RMS Kit HO Stator + Flywheel + M33 X 1.5 RH Puller (Yamaha)

Brand New High Output Stator + Magneto Flywheel Rotor + Flywheel Puller

• Direct replacement to your original unit
• Pick up pulsar coil included
• Connector included
• Opposite connector included
• Rubber grommet included
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• All products shipped are tested

High output stator generating 140W available for added accessories

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Specifications of Stator:

Dimensions:
Interior diameter: 30 mm
Exterior diameter: 84 mm
Thickness: 12 mm
Length of wires stator to grommet: 180 mm
Length of wires grommet to plug: 980 mm
Length of pickup coil's wire to grommet: 95 mm

Other specifications:
Number of wires: 4
Number of plugs: 2
Number of pins: 4

Specifications of Flywheel:

Dimensions:
Exterior Diameter: 100.4 mm
Interior Diameter: 86.5 mm
Interior Diameter Center Housing: 16 mm
Exterior Diameter Center Housing: 28 mm & 33 mm

Specifications of Puller:

Dimensions:
Length: 45.2 mm
Exterior Diameter: 30.17 mm
Interior Diameter: 23.14 mm
Exterior Diameter Center Housing: 15.19 mm

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replace
