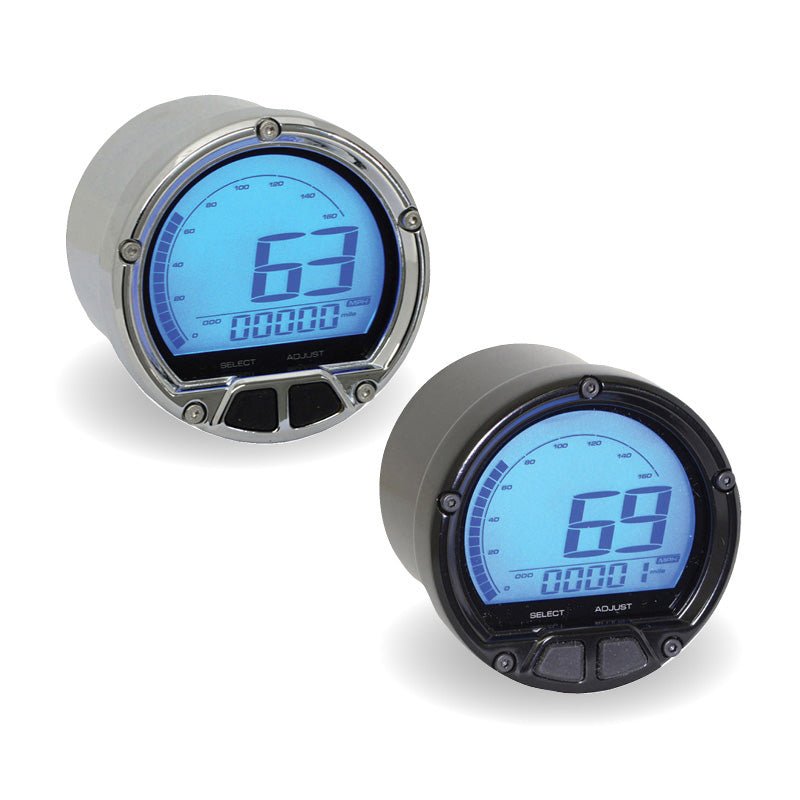

Koso North America DL-02S GP Style Speedometer For Harley-Davidson

DL-02S Speedometer for Harley-Davidson®

 Specifications
(R= Range U=Unit)

• Speedometer
  Display range: 0~260 km/h or 0~160 MPH
  Display unit: km/h or MPH
• Display internal
  < 0.5 Second RPM
• Odometer
  Display range: 0~99999 km or mile
  Reset automatically after 99999 km or mile
  Display unit: 1 km or mile
• Trip meter
  Display range: 0~999.9 km or mile
  Reset automatically after 999.9 km or mile
  Display unit: 1 km or mile
• The circumference setting
  Setting range: 300~2,500 mm
• Setting unit: 1 mm
  Pulse setting: 1~60
• Top speed record
  Display range: 0~260 km/h or 0~160 MPH
• AVE speed
  Display range: 0~260 km/h or 0~160 MPH
• Riding time
  Setting range: 0~99’59″99 second.
• Fuel meter
  Display range: 0%~100%
  Setting range: 100 Ω , 510 Ω, no display
• Supply voltage
  DC 12V
• Effective temperature range
  -10 ~ 60ºC (14 ~ 140ºF)
• Meter standard
  JIS D 0203 S2
• Meter size (DxH)
  D55 x 48.4 mm
• Sensor type Passive speed sensor :
  BF019J06
