Kimpex | SKU:
102460
Sold out
8% off

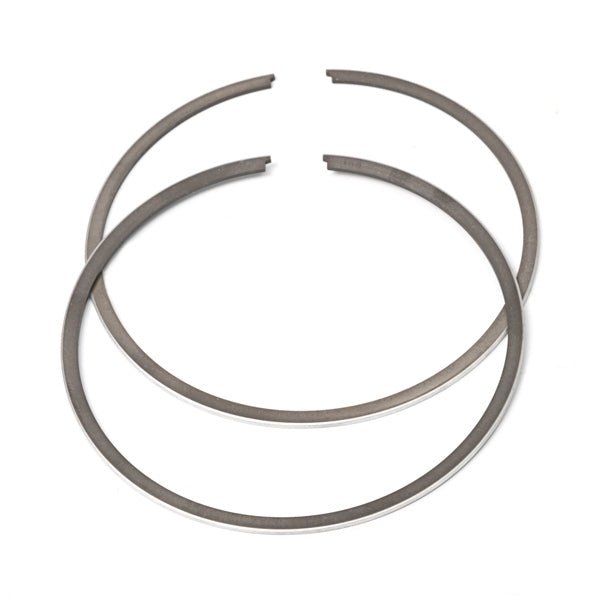

Kimpex Piston Replacement Ring Set
Sale price
$22.99
Regular price
$24.99
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec
Piston and Ring Installation:
- Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
- Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
- Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
- Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.
- Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
- Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.
- SKU: 102460
- Bore - Oversize: 1.00 mm
- Bore - Standard: 72 mm
- Compatible Brand: Fits Polaris
- Cylinders: 2
- Displacement: 488 cc
- Engine type: 2-Strokes
- Original Product Type: Piston Rings
| Make | Model | Years |
|---|---|---|
| POLARIS | 500 Classic Edge ES/R L/C 121" | 2004-2006 |
| POLARIS | 500 SKS | 1995 |
| POLARIS | 500 SP | 1992 |
| POLARIS | 500 WideTrak LX L/C 156" | 2010-2011 |
| POLARIS | Indy 500 Classic ES/R L/C 121" | 1994-1997, 1999-2001 |
| POLARIS | Indy 500 Classic Edge ES/R L/C 121" | 2002 |
| POLARIS | Indy 500 Classic L/C 121" | 1993, 1998 |
| POLARIS | Indy 500 Classic Touring ES/R L/C 133" | 2003 |
| POLARIS | Indy 500 Classic Touring ES/R L/C 133,5" | 1993-1994, 1997-2002 |
| POLARIS | Indy 500 EFI L/C 121" | 1993-1997 |
| POLARIS | Indy 500 Edge 121" | 2004 |
| POLARIS | Indy 500 Edge L/C 121" | 2001-2003, 2005-2006 |
| POLARIS | Indy 500 L/C 121" | 1995-2000 |
| POLARIS | Indy 500 RMK EFI L/C 133,5" | 1996 |
| POLARIS | Indy 500 RMK L/C 133,5" | 1996-1999 |
| POLARIS | Indy 500 SKS EFI L/C 133,5" | 1992-1996 |
| POLARIS | Indy 500 SKS L/C 133,5" | 1996-1997 |
| POLARIS | Indy 500 SPX EFI L/C | 1992 |
| POLARIS | Indy 500 Special EFI L/C 121" | 1992 |
| POLARIS | Indy Storm 800 L/C 121" | 1994-1995 |
| POLARIS | Indy Storm 800 SKS L/C 133,5" | 1994-1995 |
| POLARIS | Indy Wide Trak LX 156" | 1998, 2001 |
| POLARIS | Indy Wide Trak LX ES/R L/C 156" | 2000, 2002-2003 |
| POLARIS | Wide Trak LX 500 ES/R L/C 156" | 2004-2009 |
| POLARIS | WideTrak LX | 2012-2015 |
