All Balls Racing  |  SKU: 19-1002

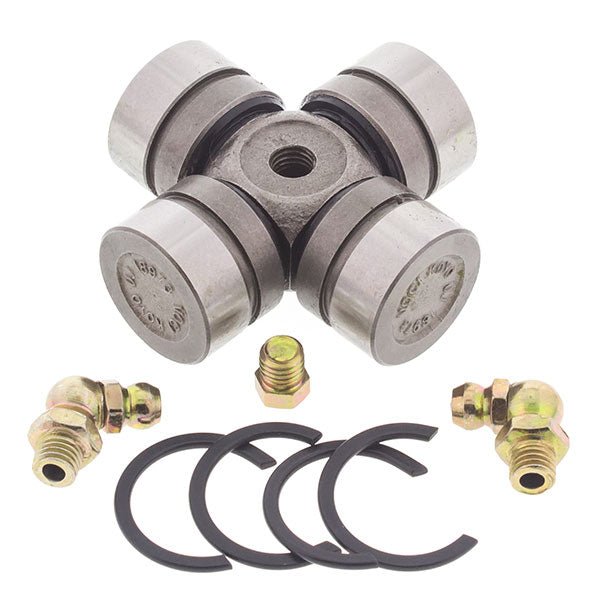

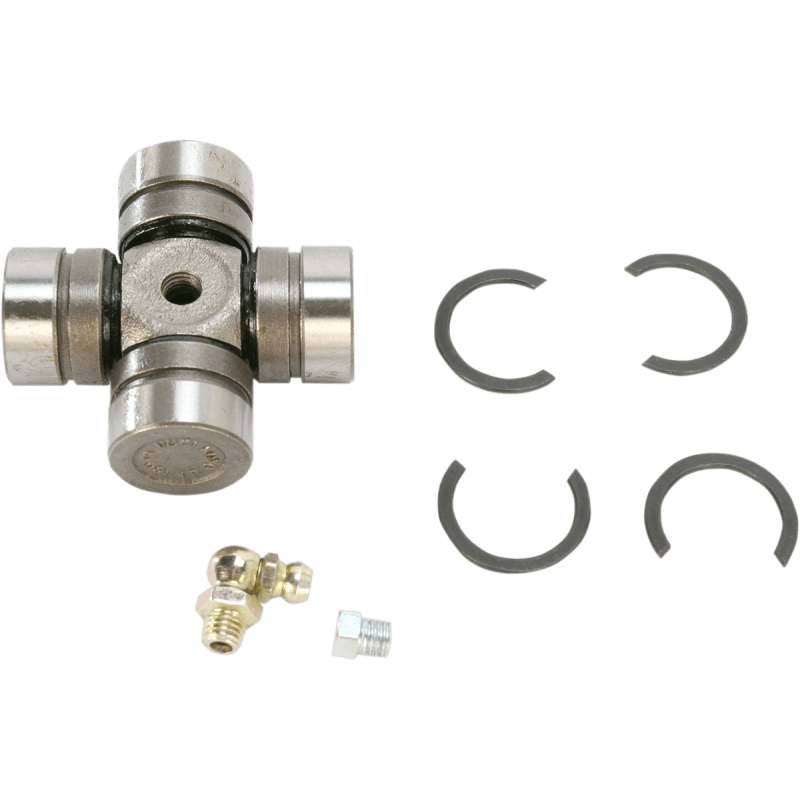

All Balls Racing Universal Joint

$45.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.
Notes for utility Models:
  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online catalog at the Axles & Universal CV Boots section.
    • SKU: 19-1002
    • Model number: 19-1002
    • Original Product Type: Universal Joints
    • Position: Varies by model
    • Snap ring included: Yes
    • Tip length: 0.866"
    • Total length: 1.417"
    • Zerk: Yes
    MakeModelYears
    KAWASAKIKAF400A Mule 610 4x42005-2016
    KAWASAKIKAF400D Mule 610 XC 4x42010-2015
    KAWASAKIKAF400J Mule SX2017-2019, 2021, 2023
    KAWASAKIKAF400K Mule SX XC 4x42017-2019
    KAWASAKIKAF400M Mule SX XC SE2017-2019
    KAWASAKIKAF400N Mule SX 4x4 SE2017
    KAWASAKIKAF400P Mule SX 4x4 FI2017-2023
    KAWASAKIKAF400R Mule SX XC 4x4 FI2021-2023
    KAWASAKIKAF400T Mule SX XC LE 4x4 FI2021-2023
    KAWASAKIKAF400W Mule SX SE FI 4x42021
    KAWASAKIKAF620A 4x4 Mule 25102000
    KAWASAKIKAF620E 4x4 Mule 30102001-2008
    KAWASAKIKAF620J 4x4 Mule 3010 Trans2005-2008
    KAWASAKIKAF620M 4x4 Mule 40102009-2023
    KAWASAKIKAF620R 4x4 Mule 4010 Trans2009-2021
    KAWASAKIKAF620S 4x4 Mule 4010 Trans2014, 2019
    KAWASAKIKAF950A 4x4 Mule 3010 Diesel2003-2004
    KAWASAKIKAF950A Mule 2510 Diesel2000-2002
    KAWASAKIKAF950B 4x4 Mule 3010 Diesel2003-2007
    KAWASAKIKAF950D 4x4 Mule 3010 Diesel EPS2008
    KAWASAKIKAF950E 4x4 Mule 3010 Diesel Trans2007-2008
    KAWASAKIKAF950F 4x4 Mule 4010 Diesel2009-2013
    KAWASAKIKAF950G 4x4 Mule 4010 Diesel Trans2009-2013
    KAWASAKIKAT620B Mule 4010 Trans 4x42022-2023
    KAWASAKIKRF750 Teryx 4x42008-2010
    KAWASAKIKRF750 Teryx 4x4 LE2008-2010
    KAWASAKIKRF750 Teryx Sport2010
    KAWASAKIKRF750G Teryx FI 4x42009
    KAWASAKIKRF750N Teryx2011-2013
    KAWASAKIKRF750P Teryx LE2011-2012
    KAWASAKIKVF300A 4x4 Prairie1999-2002
    KAWASAKIKVF300B 2x4 Prairie1999-2002
    KAWASAKIKVF400A 4x4 Prairie 4001997-1998
    KAWASAKIKVF400B 2x4 Prairie 4001998
    KAWASAKIKVF400C 4x4 Prairie 4001999-2002
    KAWASAKIKVF400D 2x4 Prairie 4001999-2002
    KAWASAKIMule 2510 4x42000
    KAWASAKIMule 2510 Diesel2000-2002
    KAWASAKIMule 3010 4x42001-2008
    KAWASAKIMule 3010 Diesel 4x42003-2007
    KAWASAKIMule 3010 Diesel EPS 4x42008
    KAWASAKIMule 3010 Diesel Trans 4x42007-2008
    KAWASAKIMule 3010 Trans 4x42005-2008
    KAWASAKIMule 4010 4x42009-2025
    KAWASAKIMule 4010 4x4 FE2025
    KAWASAKIMule 4010 Diesel 4x42009-2013
    KAWASAKIMule 4010 Diesel Trans 4x42009-2013
    KAWASAKIMule 4010 Trans 4x42009-2025
    KAWASAKIMule 4010 Trans 4x4 FE2025
    KAWASAKIMule 610 4x42005-2016
    KAWASAKIMule 610 XC 4x42010-2015
    KAWASAKIMule SX2017-2025
    KAWASAKIMule SX 4x42017-2023
    KAWASAKIMule SX SE FI 4x42017, 2020-2021
    KAWASAKIMule SX XC 4x42017-2025
    KAWASAKIMule SX XC 4x4 LE2019-2025
    KAWASAKIMule SX XC SE2017-2019
    KAWASAKIPrairie 300 2x41999-2002
    KAWASAKIPrairie 300 4x41999-2002
    KAWASAKIPrairie 400 2x41998-2002
    KAWASAKIPrairie 400 4x41997-2002
    KAWASAKITeryx 7502009, 2011-2013
    KAWASAKITeryx 750 4x42008-2010
    KAWASAKITeryx 750 4x4 LE2008-2010
    KAWASAKITeryx 750 LE2011-2012
    KAWASAKITeryx 750 Sport2010
